CSR TELLUS GRACE-FO Level-3 Monthly Land Water-Equivalent-Thickness Surface-Mass Anomaly Release 6.0 in netCDF/ASCII/GeoTIFF Formats

CSR TELLUS GRACE-FO Level-3 Monthly Land Water-Equivalent-Thickness Surface-Mass Anomaly Release 6.0 in netCDF/ASCII/GeoTIFF Formats
SHARE THIS PAGE
Please contact us if there are any discrepancies or inaccuracies found below.
DOI10.5067/GFLND-3AC06
Short NameTELLUS_GRFO_L3_CSR_RL06_LND

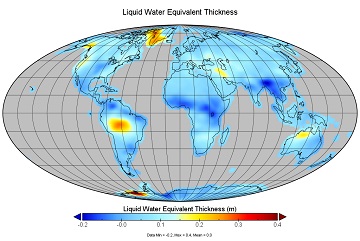

DescriptionThe CSR monthly land mass grids contain land water mass anomaly given as equivalent water thickness derived from GRACE time-variable gravity observations during the specified timespan in ASCII/netCDF/GeoTIFF formats. The Equivalent water thickness represents the total terrestrial water storage anomalies from soil moisture, snow, surface water (incl. rivers, lakes, reservoirs etc.), as well as groundwater and aquifers. A glacial isostatic adjustment (GIA) correction has been applied, and standard corrections for geocenter (degree-1) and C20 (degree-20) are incorporated. Post-processing filters have been applied to reduce correlated errors. From the RL06 version, all GRACE-FO products in the ASCII format have adopted the YAML encoding header, which is in full compliance with the PO.DAAC metadata best practices.
Version6.0
Dataset TypeOPEN
MeasurementOceans > Ocean Pressure > Water Pressure > Ocean Bottom Pressure
Solid Earth > GRAVITY/GRAVITATIONAL FIELD > Gravity
Processing Level3
CoverageRegion: Global
Northernmost Latitude: 89.5 degrees
Southernmost Latitude: -89.5 degrees
Westernmost Longitude: 0 degrees
Easternmost Longitude: 360 degrees
Time Span: 2018-May-22 to Present
ResolutionSpatial Resolution: 1 degrees (Latitude) x 1 degrees (Longitude)
Temporal Resolution: 1 Month
ProjectionType: Gridded
Detail:
Ellipsoid: WGS 84
Latency hours
Platform/Sensor
GRACE-FO
Platform
Name: Gravity Recovery and Climate Experiment Follow-On (GRACE-FO)
Orbit Period: -1 minutes
Inclination Angle: 89 degrees
Ascending Node: 1970-Jan-01 00:00:00
/
GRACE-FO ACC
SENSOR
Name: GRACE-FO SuperSTAR Accelerometer (GRACE-FO ACC)
Swath Width: -1 km
Description: The accelerometer, located at the center of mass of each satellite, measures all non-gravitational forces acting on each satellite. These forces include air drag, solar radiation pressure, and attitude control activator operation.

GRACE-FO
Platform
Name: Gravity Recovery and Climate Experiment Follow-On (GRACE-FO)
Orbit Period: -1 minutes
Inclination Angle: 89 degrees
Ascending Node: 1970-Jan-01 00:00:00
/
GRACE-FO KBR
SENSOR
Name: GRACE-FO K-Band Ranging System (GRACE-FO KBR)
Swath Width: -1 km
Description: This instrument precisely measures the changes in the separation between the two GRACE satellites using phase tracking of K- and Ka-band signals sent between the two satellites

GRACE-FO
Platform
Name: Gravity Recovery and Climate Experiment Follow-On (GRACE-FO)
Orbit Period: -1 minutes
Inclination Angle: 89 degrees
Ascending Node: 1970-Jan-01 00:00:00
/
GRACE-FO SCA
SENSOR
Name: GRACE-FO Star Camera Assembly (GRACE-FO SCA)
Swath Width: -1 km
Description: The SCA (Star Camera Assembly) consists of three temperature controlled CCD star cameras mounted to the accelerometer, along with the respective baffle assemblies. The STR delivers its video frames to the OBC, which then computes the attitude quaternions. The OBC also acts as the power and command/control interface to the STR. Once switched on and initialized, the STR proceeds with automatic coarse attitude acquisition and then on to fine attitude derivation.

ProjectGRACE Follow-On (GRACE-FO)
Data ProviderCreator: Felix Landerer
Release Place: JPL
Release Date: 2019-Jul-19
Resource: Landerer F. W. and S. C. Swenson, 2012, Accuracy of scaled GRACE terrestrial water storage estimates. Water Resources Research, Vol 48, W04531, 11 PP, doi:10.1029/2011WR011453.
Keyword(s)TELLUS, GRACE-FO, OBP, LWET, Gravity, CSR, RL06, Land
Persistent IDPODAAC-GFLND-3AC06
Questions related to this dataset? Contact podaac@podaac.jpl.nasa.gov
Citation Felix Landerer. 2019. CSR TELLUS GRACE-FO Level-3 Monthly Land Water-Equivalent-Thickness Surface-Mass Anomaly Release 6.0 in netCDF/ASCII/GeoTIFF Formats. Ver. 6.0. PO.DAAC, CA, USA. Dataset accessed [YYYY-MM-DD] at https://doi.org/10.5067/GFLND-3AC06.

Download Citation
RIS XML JSON-LD

For more information see Data Citations and Acknowledgments.

Journal Reference Landerer F. W. and S. C. Swenson, Accuracy of scaled GRACE terrestrial water storage estimates. Water Resources Research, Vol 48, W04531, 11 PP, doi:10.1029/2011WR011453, 2012.
